Application:

QZB axial flow pump are used in flood dewatering application, water supplying and dewatering in urban area, storm-water drainage, agriculture and industry water supplying, water transfering etc.

Operating conditions:

pH value: 4-10

Max water temperature: 50ºC

Medium volume ratio: < 2%

Medium max density of: < 1.2×103kg/m3

Medium: lightly contaminated water

Structure:

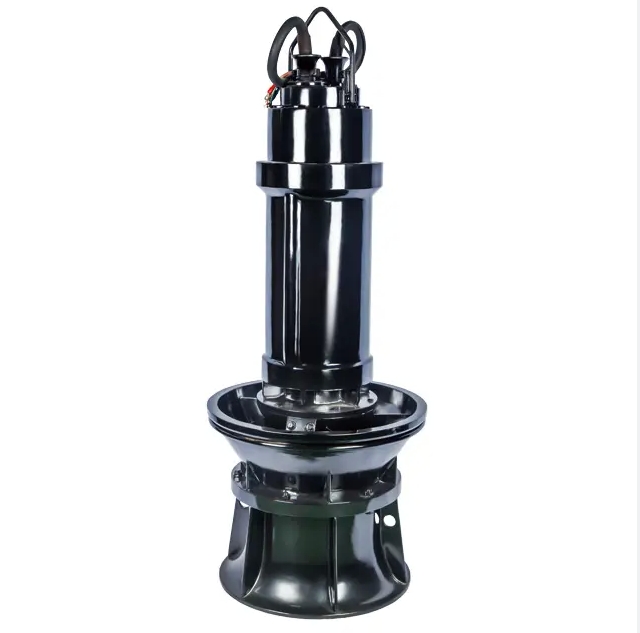

QZB axial flow pump is combined of pump and submersible motor parts. Pump mainly contains sectional bell, impeller, impeller casing, and diffusor. And the submersible motor is the dry closed asynchronous one, which makes sure that the motor can work smoothly in water.

Material options:

Cast iron, stainless steel.

Pls contact us to get the details Spec.
