Pressure ControllerMore+

1.pressure switch used in water sysytems.

2.the swith start and stop the water pump automatically according to the pressure setting pressure value,stopping the water pump in the case of water shortage


1. Staring Pressure: 1.5bar or 2.2bar

2. Max Rated Current: 10A

3. Max Allowable Pressure: 10bar

4 .Rated Voltage: 110V-120V or 220V-240V

5. Frequency: 50/60HZ

6. Max Ambient Temperature: 60

7. Protection Degree: IP65


1.Starting Pressure: 1.5bar Or 2.2bar

2.Max Rated Current: 10A

3.Max Allowable Pressure: 10bar

4.Rated Voltage: 110V Or 220V

5.Frequency: 50/60HZ

6.Max Ambient Temperature:40℃

7.Max Liquid Temperature:60℃

8.Protection Degree: IP54


1.Starting Pressure: 1.5bar or 2.2bar

2.Max Rated Current: 10A

3.Max Allowable Pressure: 10bar

4.Rated Voltage: 110V or 220V

5.Frequency: 50/60HZ


1.Starting Pressure: 1.5bar or 2.2bar

2.Max Rated Current: 10A

3.Max Allowable Pressure: 10bar

4.Rated Voltage: 110V or 220V

5.Frequency: 50/60HZ

6.Max Ambient Temperature:40℃

7.Max Liquid Temperature:60℃

8.Protection Degree: IP54

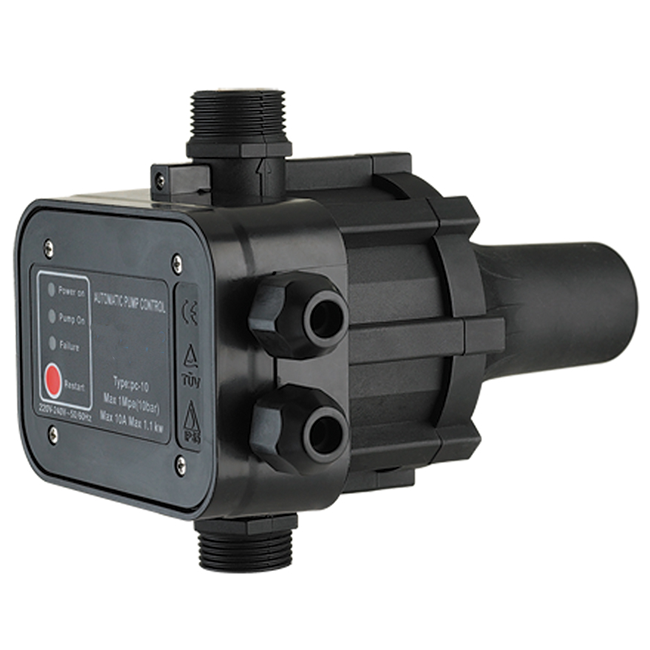

Voltage:AC 220V/110V
Frequency:50/60Hz
Max Current:10A
Max Power:1.1 kW
Adjustment Pressure:1.0~3.5bar
Not Adjustment Pressure:0.8 1.5 2.2bar
Max Working/Pressure:10bar
Jointscrew :G1
Protection/Grade:IP65
Temperature:90℃
