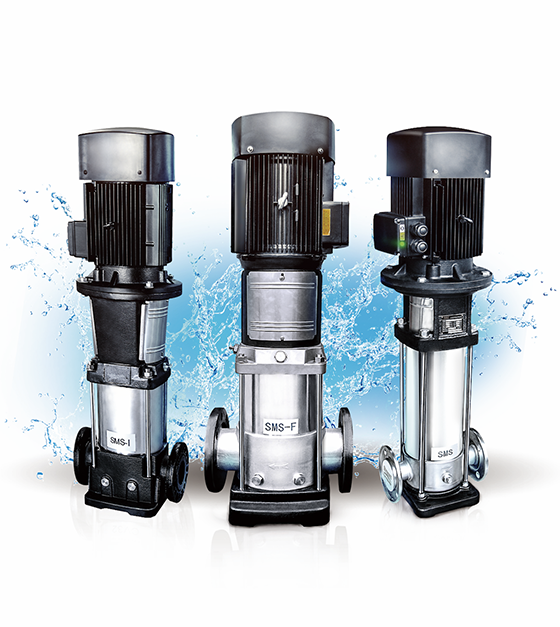

SMS, SMS-F, SMS-I Pump is a kind of multifunctional products. It can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure.

Application

Irrigation
Water supply
Industrial pressure boost
Liquid transfer and delivery
Water treatment

Working Condition

"Thin, clean, non-flammable and non-explosive
liquid containing no solid granules and fibers"
Power range from 0.37 kW to 45 kW
Flow range from 0.7 m³/h to 120 m³/h
Head up to 309 m
Temperature range from -20°C to 180°C

Features & Benefits

Pump

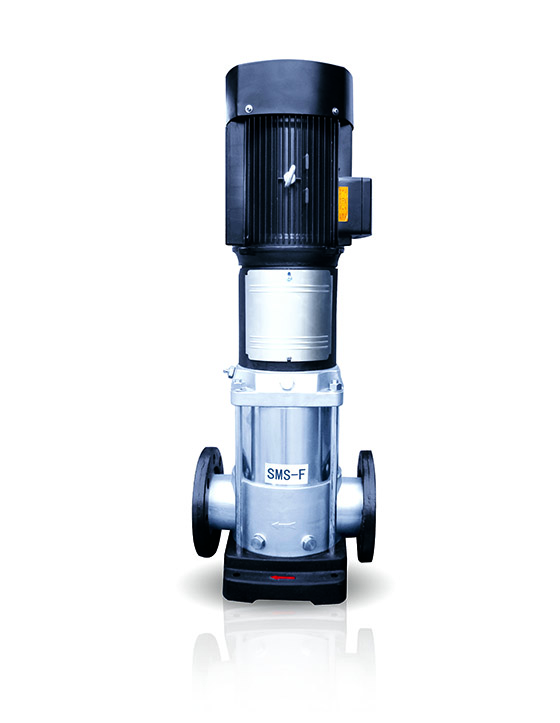

SMS, SMS-F, SMS-I are non-self priming vertical multistage centrifugal pumps.
The inlet and outlet are located at the pump bottom at the same plane - inline type.
All pumps are equipped with a maintenance-free mechanical seal of the cartridge type.

Motor

SMS, SMS-F, SMS-I are fitted with a totally enclosed, fan-cooled, 2-pole, three-phase standard motor.
From 0.37kW to 2.2kW, single-phase motor is also available.

Motor Protection

Single-phase motor has a built-in thermal overload switch.
Three-phase motors must be connected to a motor protective circuit breaker according to local regulations.

Benefits

Nice appearance, light weight and less land area
High efficiency and energy saving
Small noise at running
Simple installation and maintenance
Safe and durable
