1. Liquid Temperature: +2℃~+100℃
2. Maximum Ambient Temperature: +40℃
3. Maximum System Pressure: 10bar
4. Protection Level: IP44
5. Mains Connection: 220V/50Hz
6. Insulation Class: H
7. Pumped Liquid Characteristics: Clean, Free From Solids And Mineral Oils, Non-Toxic, Chemically Neutral, Close To The Characteristics Of Water
8. Installation: The Motor Shaft Must Be Kept In Horizontal Direction
9. PH: 6.5 To 8.5
- features
- technical data
- order

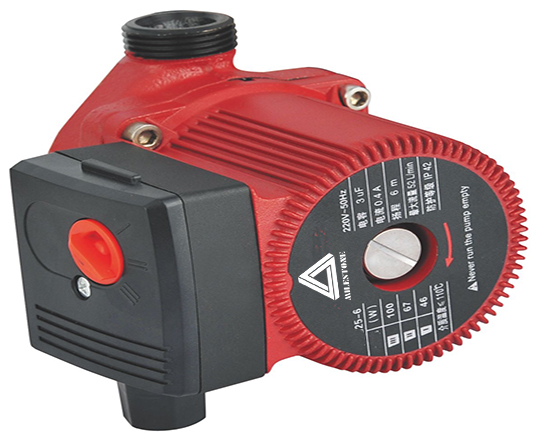

For Hot Water Circulation System Such As HVAC Systems, Solar Hot Water Circulation System, Boiler Heating System, Pressurization Of Domestic Tap Water, Industry Water Circulation System, Etc.
1. Liquid Temperature: +2℃~+100℃
2. Maximum Ambient Temperature: +40℃
3. Maximum System Pressure: 10bar
4. Protection Level: IP44
5. Mains Connection: 220V/50Hz
6. Insulation Class: H
7. Pumped Liquid Characteristics: Clean, Free From Solids And Mineral Oils, Non-Toxic, Chemically Neutral, Close To The Characteristics Of Water
8. Installation: The Motor Shaft Must Be Kept In Horizontal Direction
9. PH: 6.5 To 8.5
-
