GLOBAL

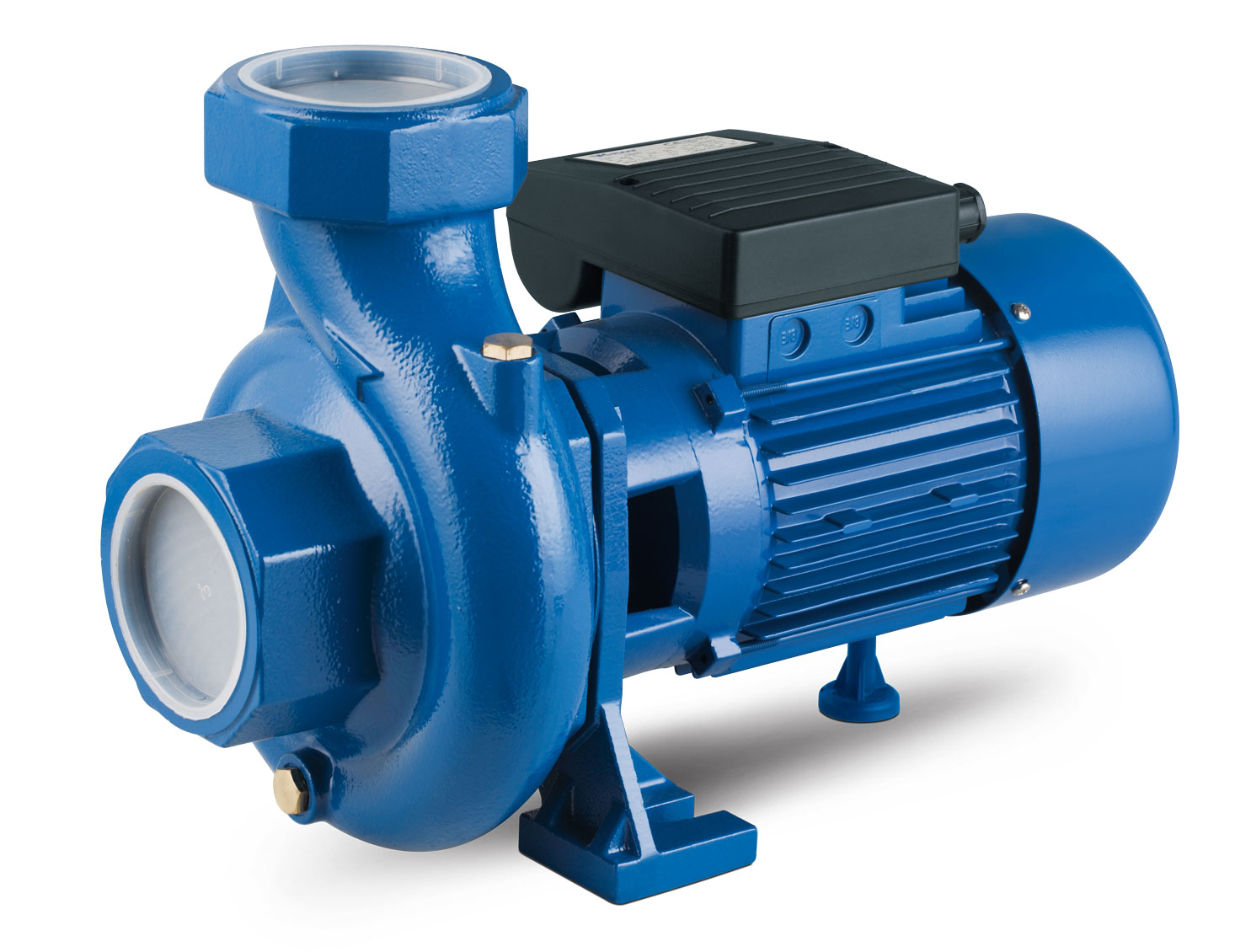

CS Series
CS300 CS400

■  Max. Working Pressure 6 Bar

■  Liquid Temperature Up To 80

■  Ambient Temperature Up To 40

■  Total Suction Lift Up To 8 Mt.

■  Continuous Duty


where to buy?
overview
  • features
  • technical data
  • order

    APPLICATIONS

    - Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rates.

    - Suitable to pump clean water or non-aggressive liquids charged with small solid impurities.

    - To be used in flow irrigation systems in gardening and agriculture and in industrial fittings.

    OPERATING LIMITS
    - Suction lift up to 6-8m with foot valve.
    - Maximum operating pressure: 8 bar.
    - Maximum ambient temperature: +40℃ .
    - Liquid temperature up to +90℃ .
    - Maximum altitude +1000m.
    PRODUCTION STANDARD
    - IEC 60034-1 - IEC 335-1
    - IEC 34-1 - ISO 2548

    		DESIGN FEATURES
    - Pump body: cast iron.
    - Impeller: cast iron.
    - Motor shaft: AISI1045.
    - Mechanical seal: NBR/ Graphite/Ceramic.
    - Internal thermal protector.

    MOTOR
    - Single phase power supply with capacitor
    permanently activated.
    - Insulation class: B
    - Protection: IP44
    - Speed of rotation:2850rpm
    - Continuous duty: S1
