Applications and installation

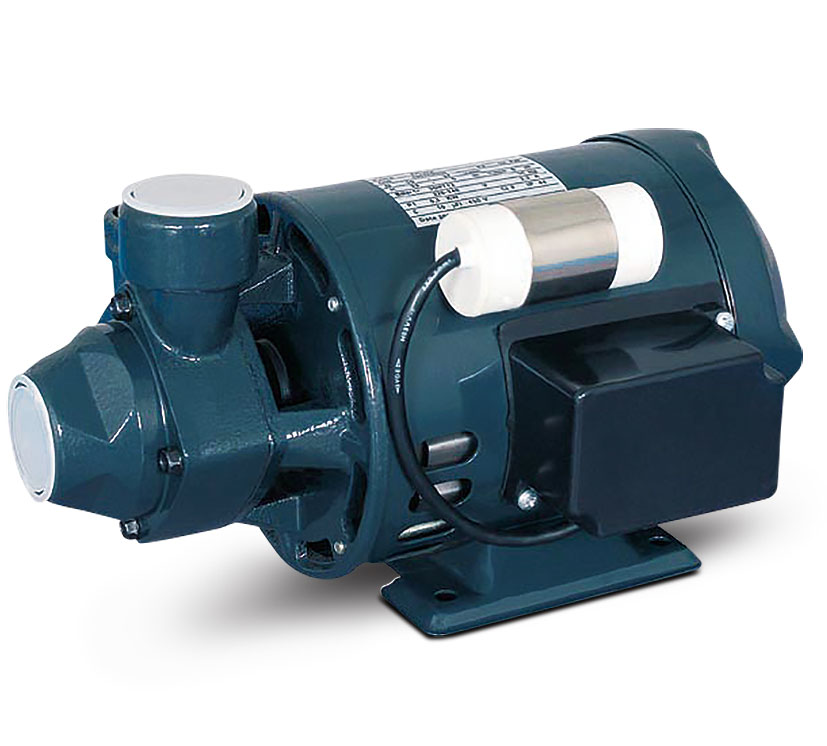

These pumps with peripheral impeller are able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves.

For the correct functioning of the pump, use to pump clean water, or non-aggressive liquids only , without sand or other solid impurities.

They are qualified in domestic fitting, to increase the system pressure in aqueducts and for automatic water distribution by autocalve tanks and by hydrosphere units..

Pumps should be installed in a covered area, protected
against the weather.

Operating limitations

Liquid temperature up to 60℃

Ambient temperature up to 40℃

Total suction lift up to 9m

Continuous duty

Construction features

PUMP

Pump Body: Cast Iron

Impeller: Brass

Mechanical Seal: Carbon / Ceramic / Stainless Steel

MOTOR

Single Phase

Heavy Duty Continuous Work

Motor Housing: Aluminum / Steel-plate

Shaft: Carbon Steel / Stainless Steel

Insulation: Class B / Class F

Protection: IP44 / IP54

Cooling: External Ventilation
