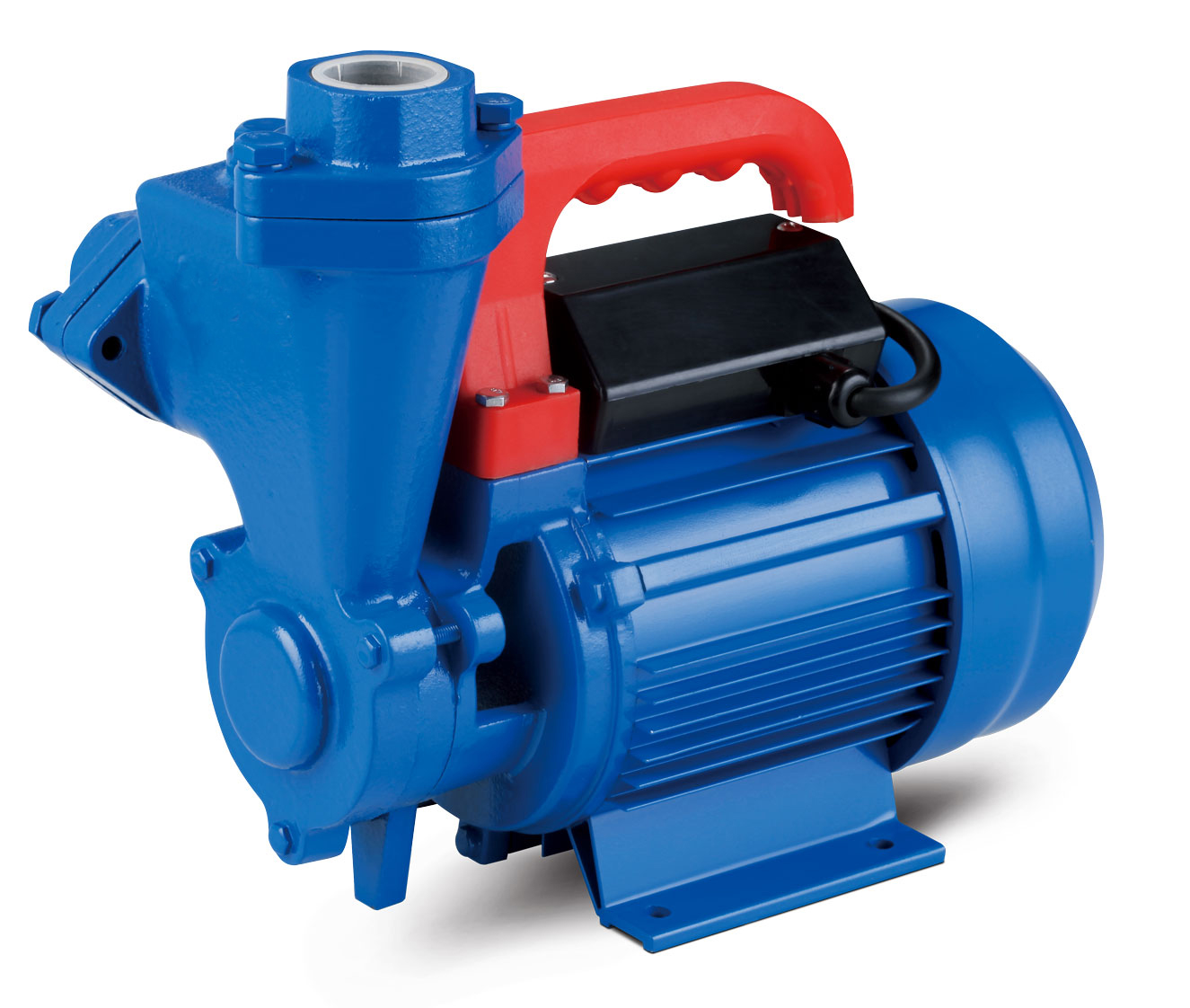

STP65 Series self-suction
STP65
STP65 Series
Operating limitations
Max ambient temperature up to 40℃
Max fluid temperature up to 80℃
Max pressure up to 10 bar
overview
- features

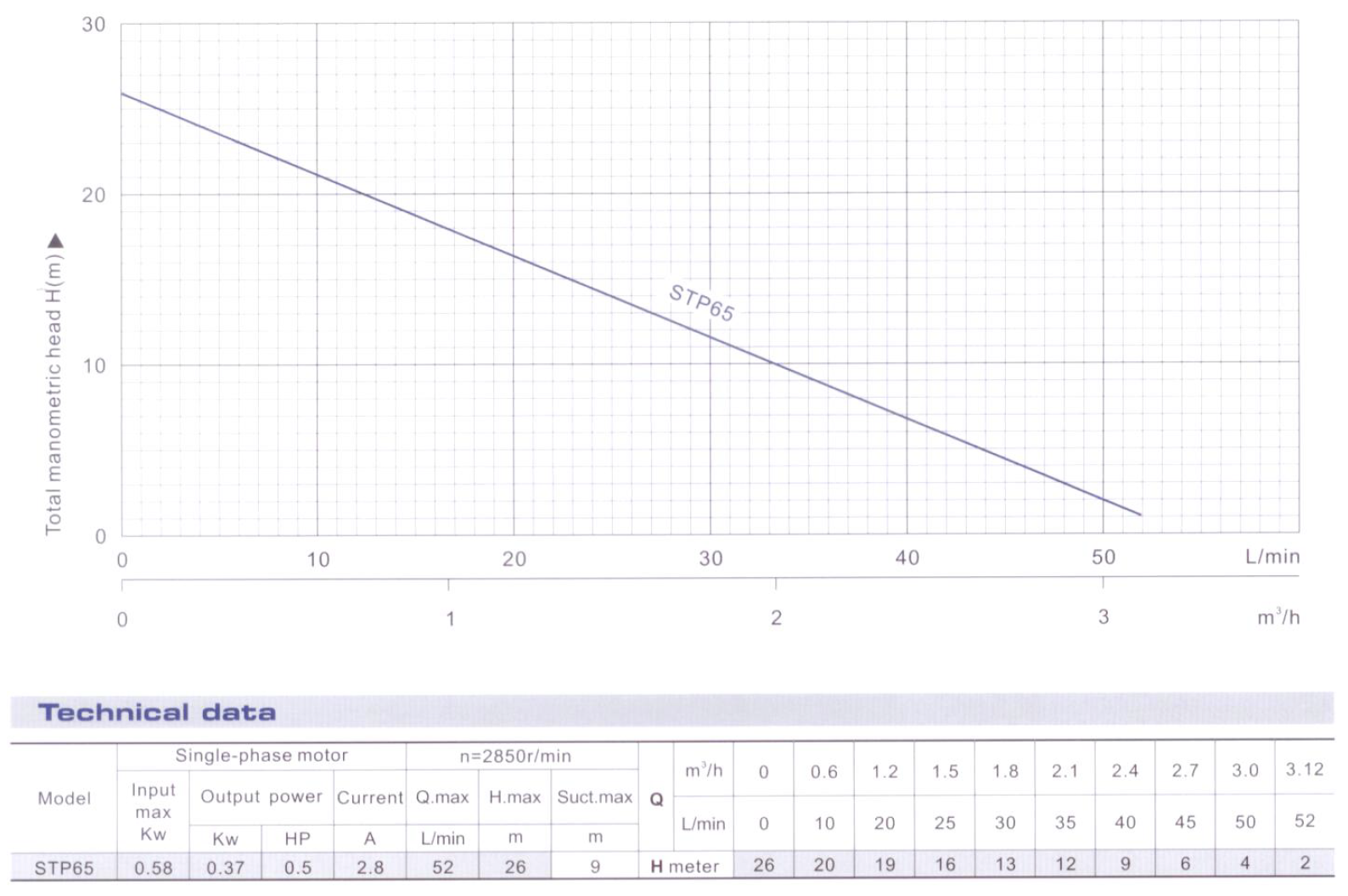

- technical data
- order
Construction features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel /stainless steel
Impeller:Brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon.
