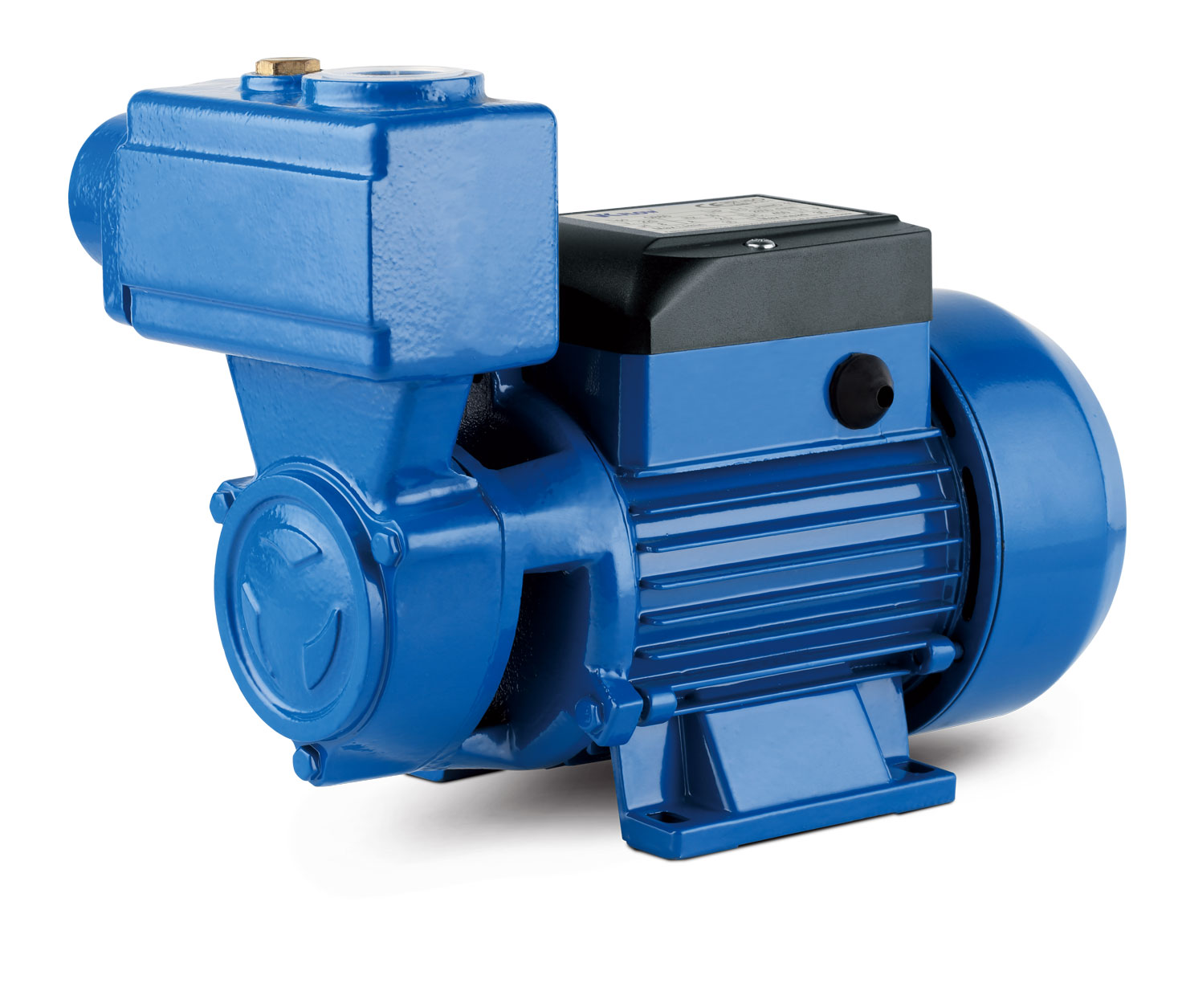

TPS Series

Applications and installation

The TPS series are self-suctionl pumps, with peripheral impeller containing numerous radial blades in its edge, self-priming because of the particular design of the pump body which is with a small tank, water is threw outwards by centrifugal motion caused by the impeller. Then the water rotates with the impeller, generating high pressure. These pumps have a compact size and are very economical, finding the most different operating requirements such as: supply water from well, pool an so on, increase the water pressure in the pipe, garden sprinkling or clean washing.

Pumps should be installed in a covered area, protected

against the weather.

Operating limitations

Max ambient temperature up to 40℃

Max fluid temperature up to 80℃

Max pressure up to 10 bar

 Construction features

Pump Body: cast iron

Motor Housing: aluminum

Shaft: 45# steel /stainless steel

Impeller: Brass

Motor: closed, externally ventilated

Insulation Class: B/F

Protection Class: IP44/IP54

Duty: continuously rated

Mechanical Seal: ceramic steatite/ metalized carbon
