Applications And Installation

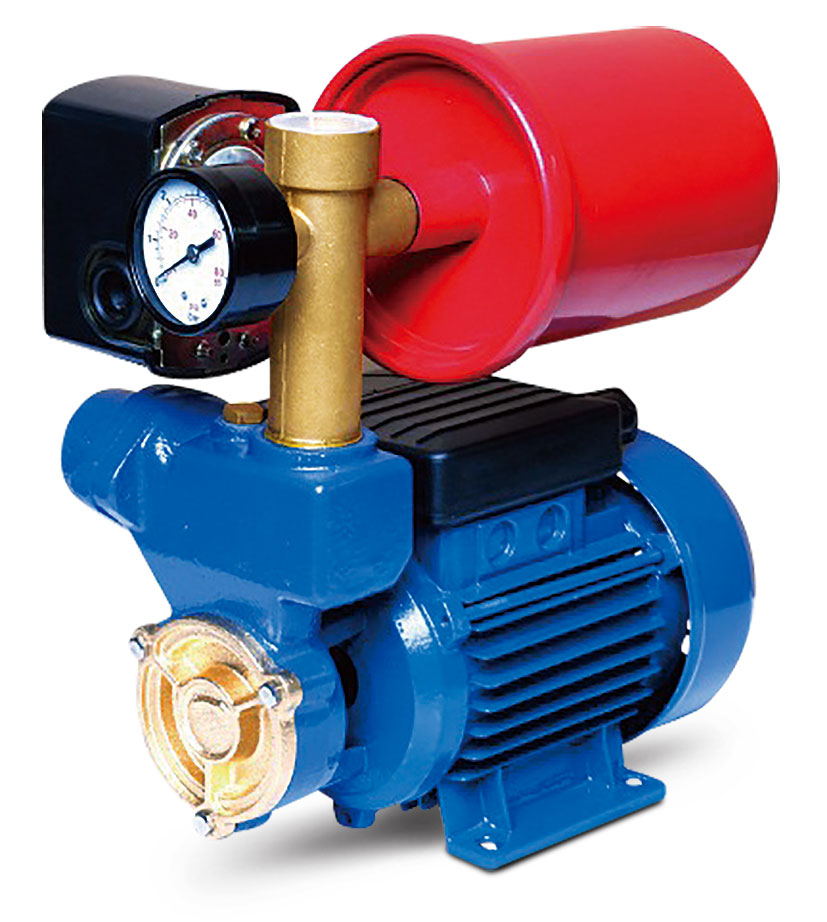

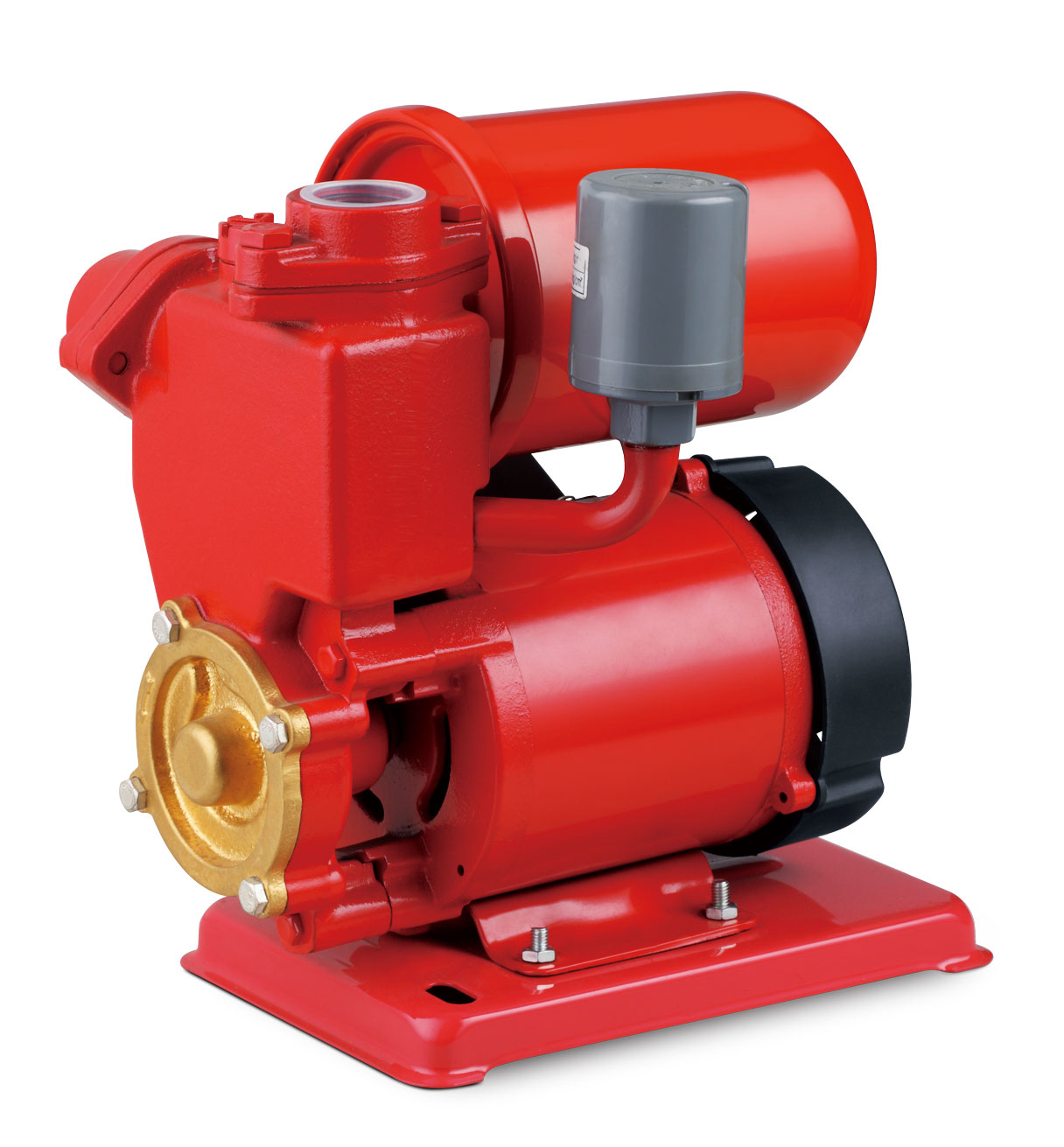

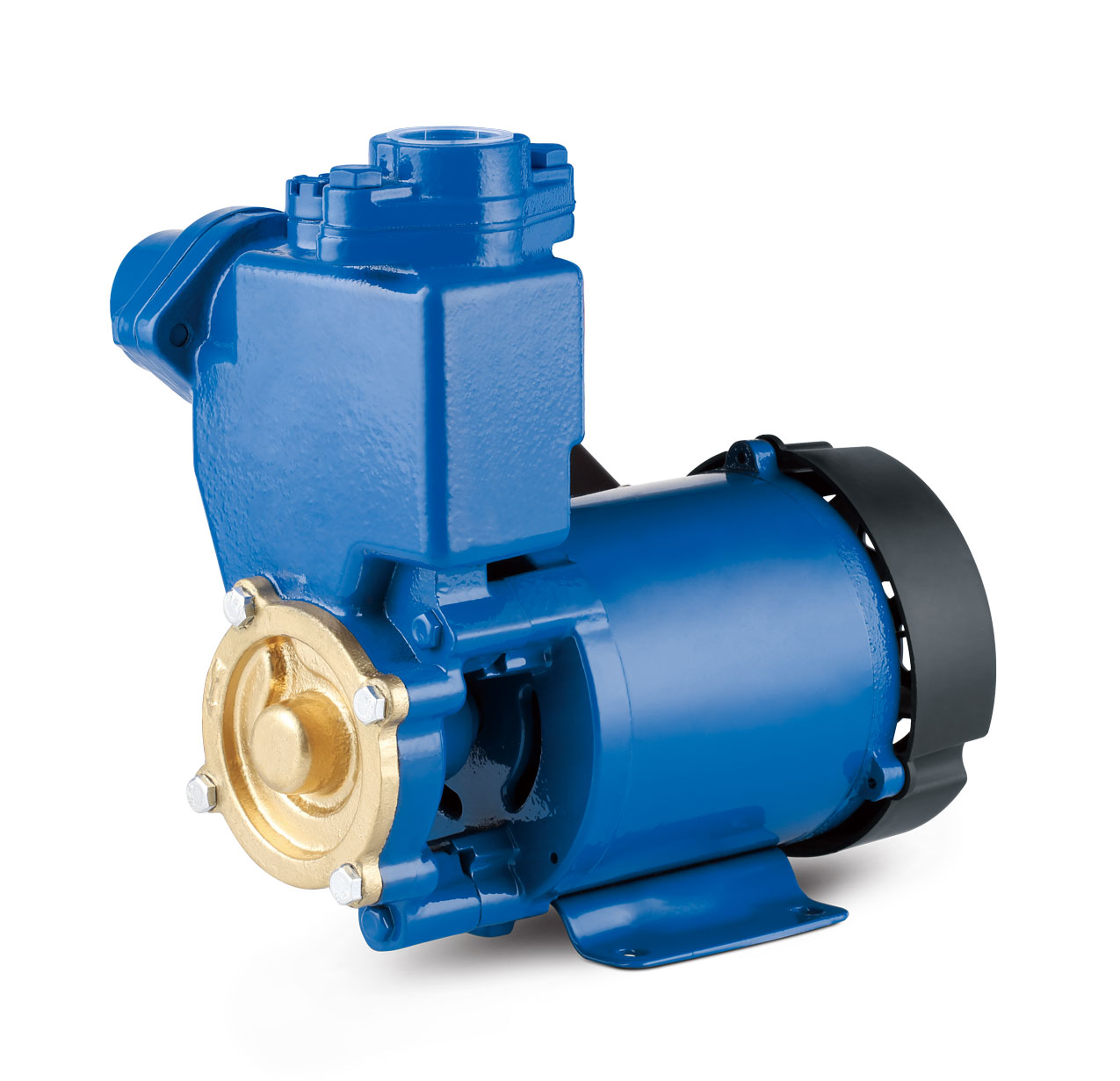

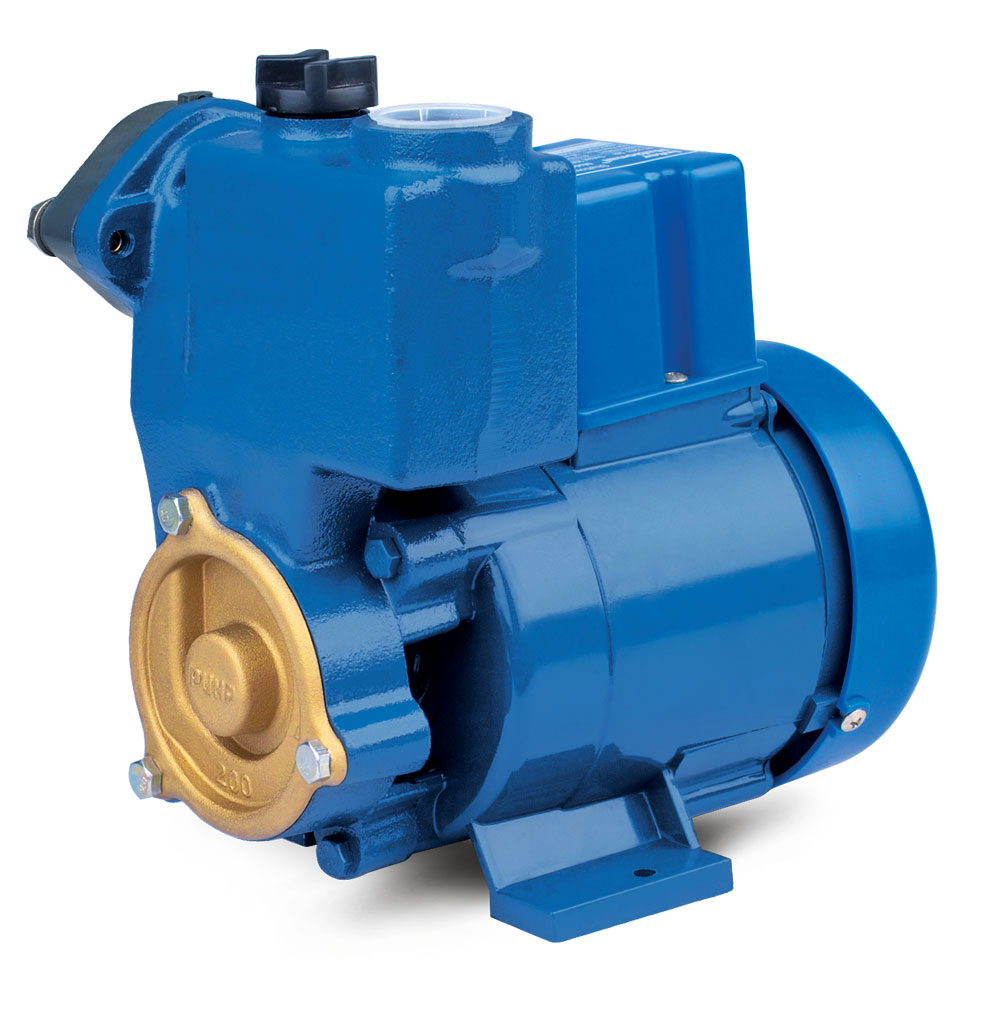

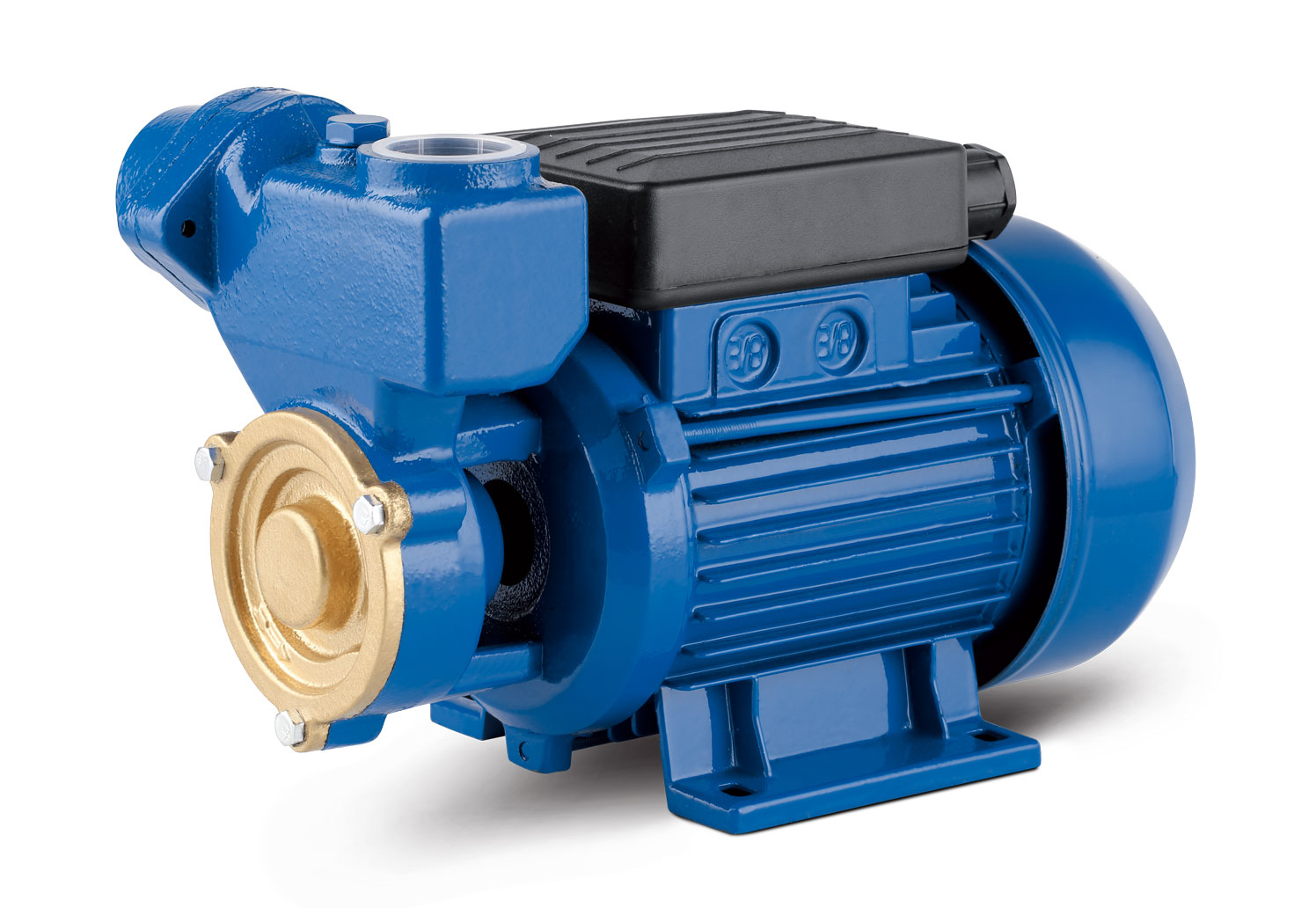

The TPS Series Are Self-Suctionl Pumps, With Peripheral Impeller Containing Numerous Radial Blades In Its Edge, Self-Priming Because Of The Particular Design Of The Pump Body Which Is With A Small Tank, Water Is Threw Outwards By Centrifugal Motion Caused By The Impeller. Then The Water Rotates With The Impeller, Generating High Pressure. These Pumps Have A Compact Size And Are Very Economical, Finding The Most Different Operating Requirements Such As: Supply Water From Well, Pool An So On, Increase The Water Pressure In The Pipe, Garden Sprinkling Or Clean Washing.

Pumps Should Be Installed In A Covered Area, Protected

Against The Weather.

Operating Limitations

Max Ambient Temperature Up To 40℃

Max Fluid Temperature Up To 80℃

Max Pressure Up To 10 Bar

 Construction Features

Pump Body: Cast Iron

Motor Housing: Aluminum

Shaft: 45# Steel /Stainless Steel

Impeller: Brass

Motor: Closed, Externally Ventilated

Insulation Class: B/F

Protection Class: IP44/IP54

Duty: Continuously Rated

Mechanical Seal: Ceramic Steatite/ Metalized Carbon
